The problem

A Bot is drawn as a gradient circle from boring-avatars, picked from its seed. In a list, two Bots are told apart by a blur of colour with nothing to recognise, and OpenBot's own mark is a different drawing altogether, so the product and its Bots look as if they came from two places.

The colours are shadcn's neutral defaults, down to a mid-grey focus ring. Text sits on a scale of its own, and the stylesheet admits it: "Text is sized on a 15px base while everything else is on Tailwind's 16px rem."

Dark mode is a switch that ignores the operating system, and the old code wrote light to storage on every load, so nothing can tell a person who chose light from one who never chose.

The approach

The values go where every screen already reads them. The palette fills shadcn's own variables in app/src/theme.css, so Bots, Capabilities, Connections, Settings and Admin change without touching each screen, and each skin still overrides them under :root[data-skin]. Light is cool greys, a near-black primary and one accent, #6430ab, kept for focus and selection; dark is near-black with the primary turned light. Text drops the 15px scale and follows the browser's own size, so it is larger everywhere. That reaches the browser extension's pages too, since they import app/src/theme.css, and the recording notice copies the colours, with a test holding the copy equal.

Dark mode follows the system. Settings → General → Appearance offers System, the default, Light and Dark, stored under a new openbot-appearance key and written only when somebody chooses. For anybody who never chose, the old openbot-theme key's dark stays Dark and its light reads as System, since it was written whether or not anybody asked. index.html repeats the rule before the first paint, and a test holds the two together.

Every Bot is an orb, drawn on a canvas. BotOrb draws a glass sphere with two eyes that blink, follow the pointer, and show listening, working and done. A Bot's look comes from a hash of its seed: one of eight colours, and from the same hash a turn of its colour masses, a nudge to its hue and the spacing of its eyes, so two Bots in one colour still look apart. Violet is kept for OpenBot's own mark (AgentOrb), so no Bot is mistaken for the product. Nothing imports boring-avatars any more, and it leaves the app's dependencies.

A list of faces costs little. Every orb on the page draws on one shared animation frame, and none draws off screen or in a hidden tab. A small orb, under 40px, holds its colour still, only blinks and watches, skips any frame that would draw what its canvas already shows, and draws at most about 30 frames a second, so a sidebar at rest draws only blinks. With reduced motion an orb is one still picture.

The cost is real and worth naming: every Bot's colour changes on every deployment, and somebody who knew a Bot by its gradient learns it again. Larger text also means a little less fits on a dense screen.

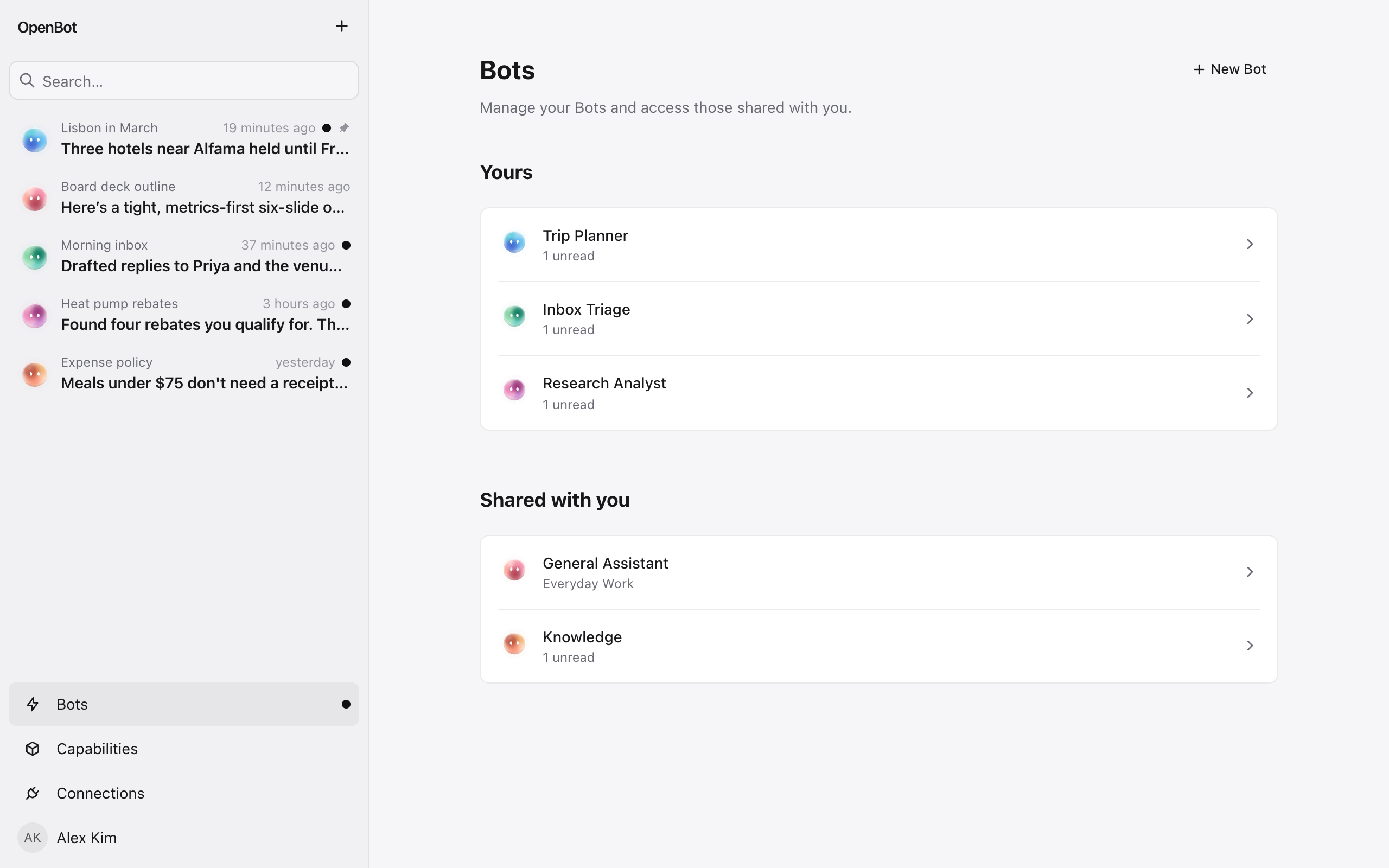

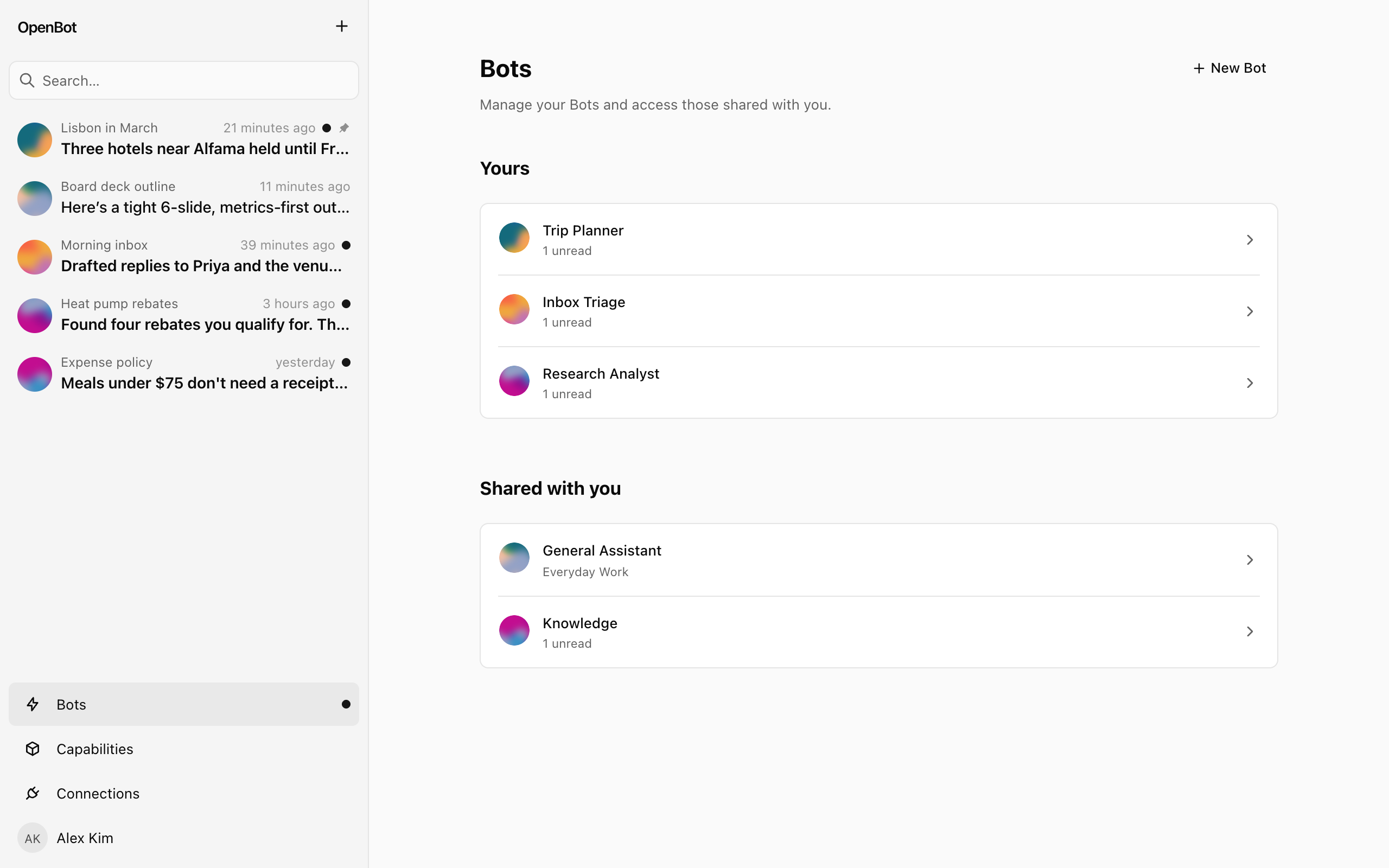

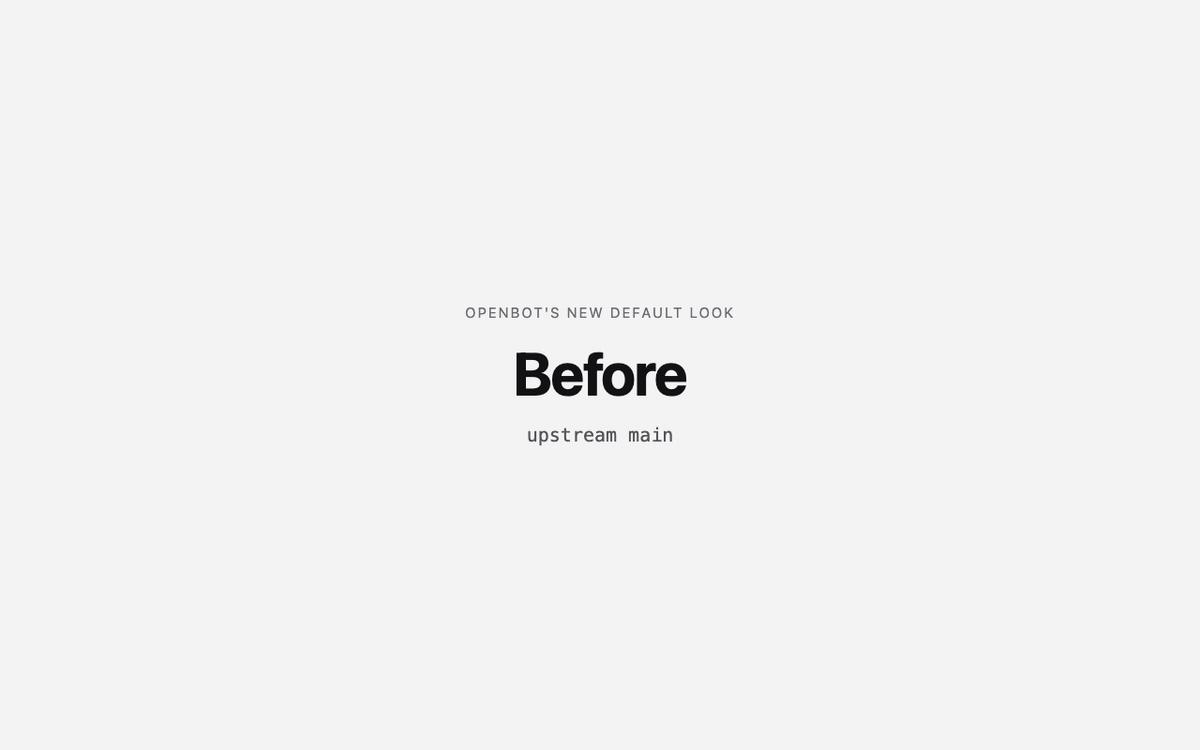

Before	After

What is not covered

• No setting in the app stills the orbs; only the system's reduced-motion setting does.
• A tenant theme may still set only its approved variables, so it cannot set --brand or the new status colours, and nothing reads the status, glass and shadow tokens yet.
• A Bot's colour comes from its seed alone and can't be chosen here; Let a Bot's owner choose its colour and draw it a new face #914 adds that.
• pointercancel is not listened for, so when the browser takes a touch over to scroll, the eyes stay on the last point.
• A frame callback that throws stops the shared loop, and every orb holds still until another one starts drawing.
• Onboarding's example Bots are announced twice, by the avatar and the heading beside it.

Verification

typecheck, lint, format:check and the assertion-shape guard are clean. The full app suite is 2190 pass, 0 fail, against 2129 pass, 0 fail on upstream main at ab9855c1.

• app/tests/bot-orb.test.tsx: no Bot is violet; the Bots OpenBot ships with are drawn unlike each other, two in one colour included; fifty orbs share one frame; a small orb at rest draws nothing until the pointer moves, and about thirty frames a second on a 120Hz screen; nothing draws off screen or in a hidden tab; AgentOrb maps every state and refuses a size that isn't px.
• app/tests/visual-system.test.ts: every light variable has a dark value; text roles clear 4.5:1 on every ground, and each status word on its soft fill, in both themes; the root font size is the browser's.
• app/tests/settings-appearance.test.tsx: Appearance offers System, Light and Dark, and Dark is drawn and remembered.
• app/tests/theme-preference.test.ts, extended: the pre-paint script and the provider follow the system live; only a choice is written; storage that throws still follows the system.
• app/tests/skins-openmuse.test.tsx, extended: that skin's header draws its face at its slot's size.

Merge notes

orb/ai-core.tsx is gone and AIState is exported from agent-orb. AgentOrb takes its size only in px, as "64px", and throws on anything else, because a canvas drawn at a share of its container has nothing to be a share of. A branch in flight that imports ai-core or passes size="100%" has to follow.
